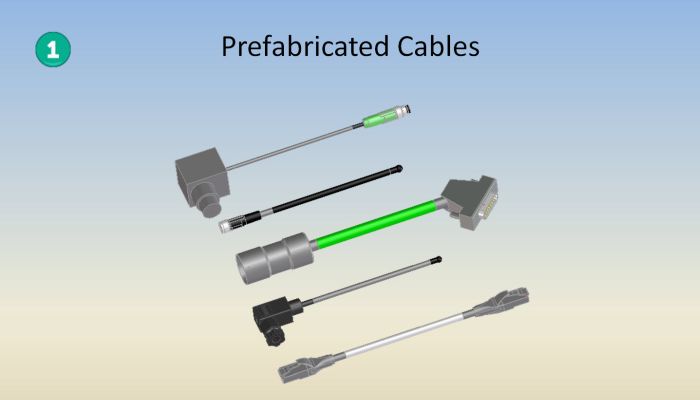

A new structural entity of “Prefabricated cables” is introduced. Prefabricated cables are ready cables and provide 100 % adhesion between connector housing and cable.

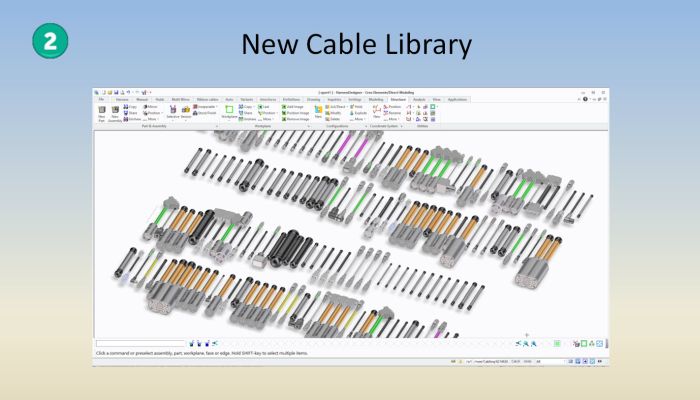

A new set of tools to define cable libraries are introduced in this version.

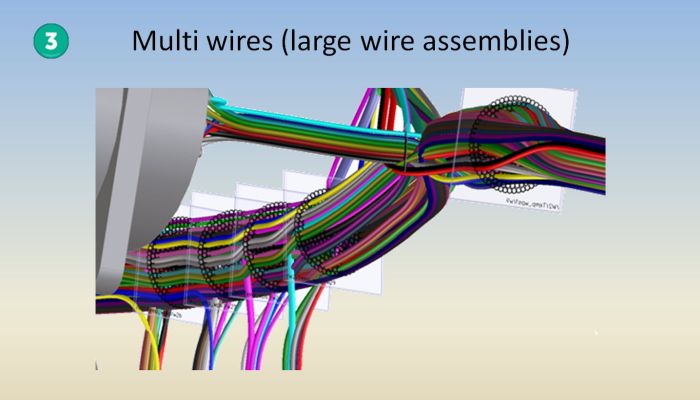

Now it is possible to create parallel running wires in a bundle automatically from channels. Wires in the channel can be created manually as well automatically by ECAD connection list.

Now it is possible to route multi wires on edges.

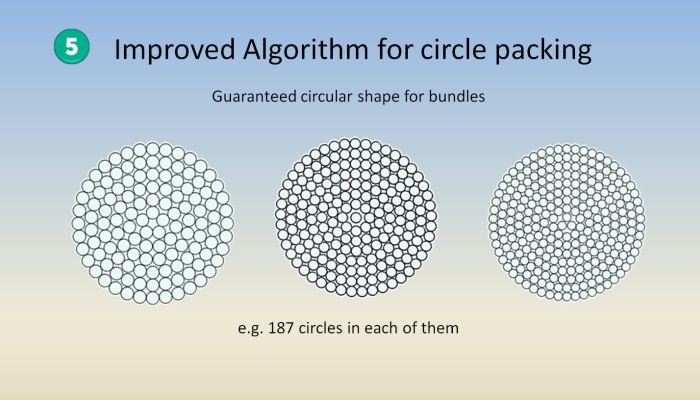

New calculation method ensures ultra fast process and exact perfect circular chape of the outer contour (only in few seconds).

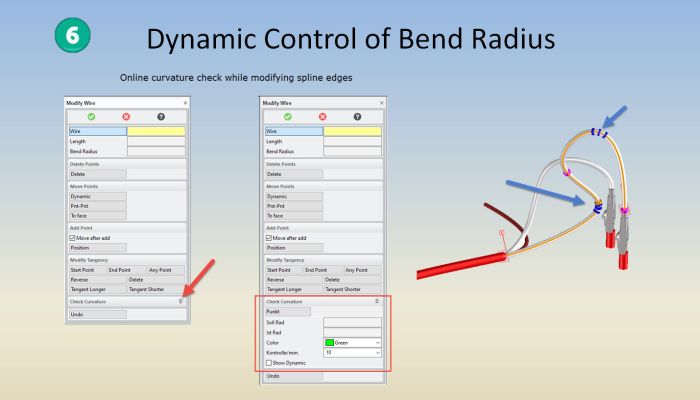

Now you can dynamically check bend radius violations. Dynamic curvature checks while modfying wires, cables and channel segments helps user to control the routing efficiently.

With one click on a circular edge selection of origin and direction at the same time enables quick creation of pneumatic and hydraulic hoses. Now pneumatic and hydraulic hoses can also be easliy added to the libraries.

While creating wires through guides user can decide the location of the wire in the guide.

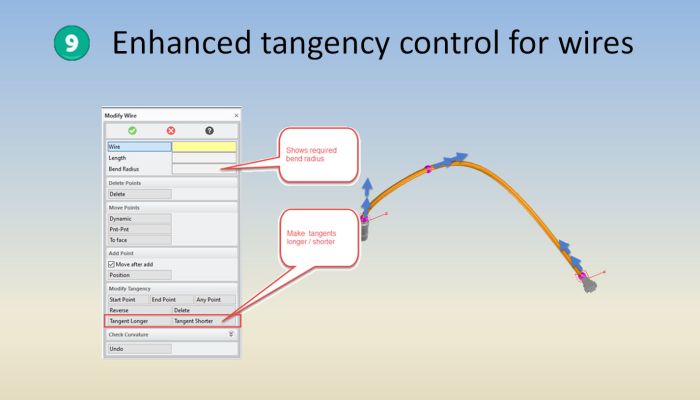

Enhanced tangency control while modifying wires.

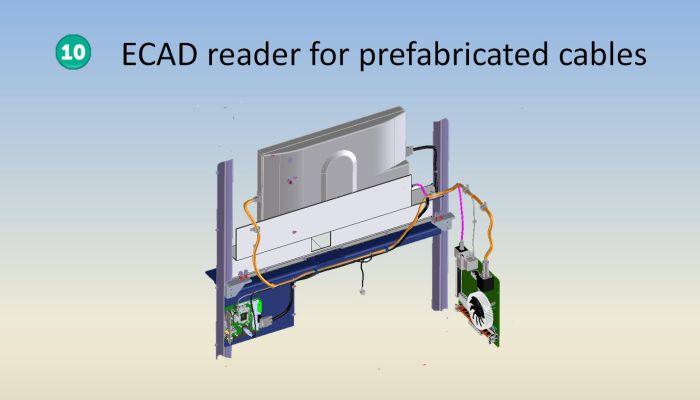

Users can automatically create cables by using a ECAD connection list.

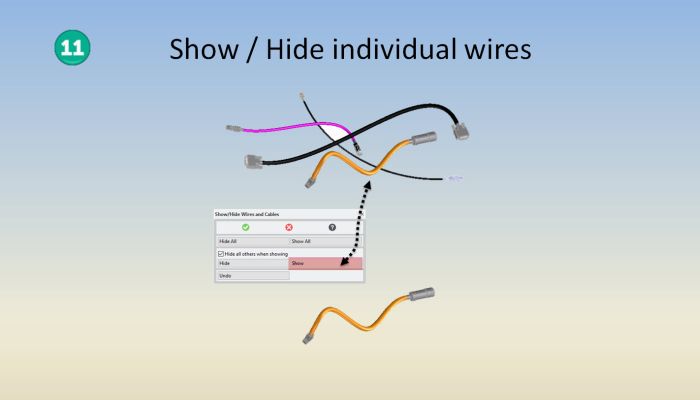

Users can now selectively show and hide individual wires.

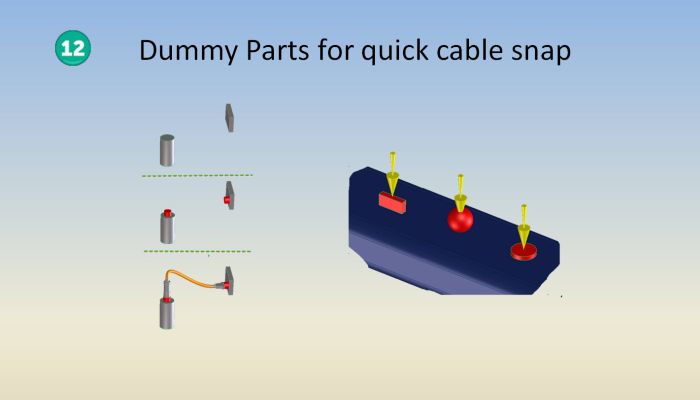

Dummy counter parts can be used to quick positioning of connectors of pre-fabricated cables. With this function, reference designators can be also assigned for ECAD interface.

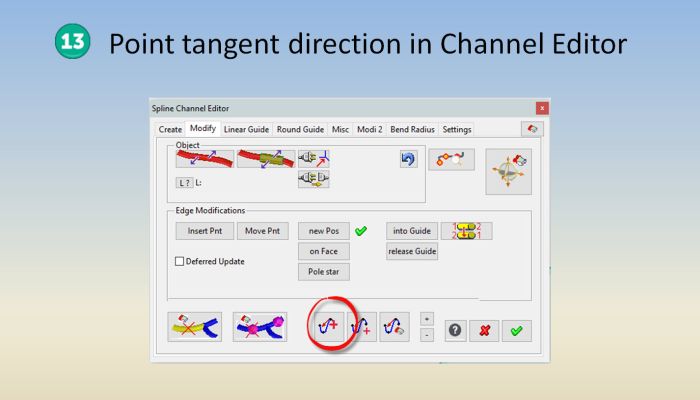

Users can now select a point and set its current tangent direction as its tangent.

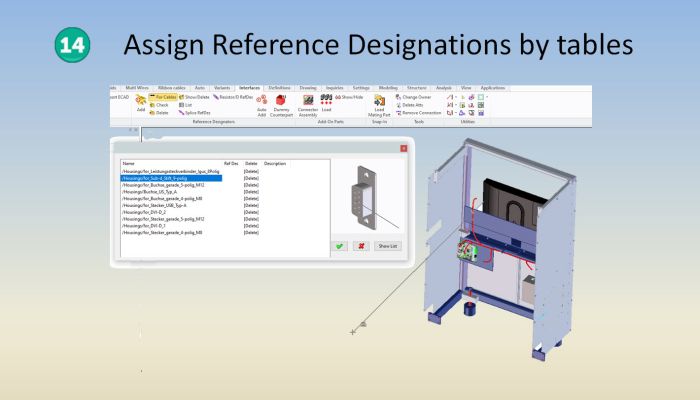

With the new version users can assign now reference designators to counter-parts of cables in order to create automatic connections by using ECAD connection list.

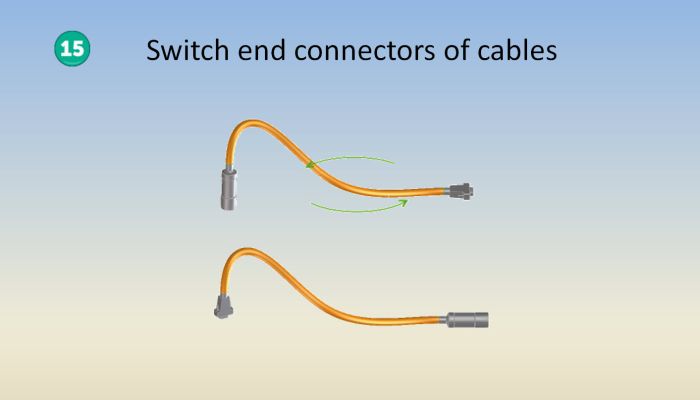

Now users can switch end connectors of cables with one click.

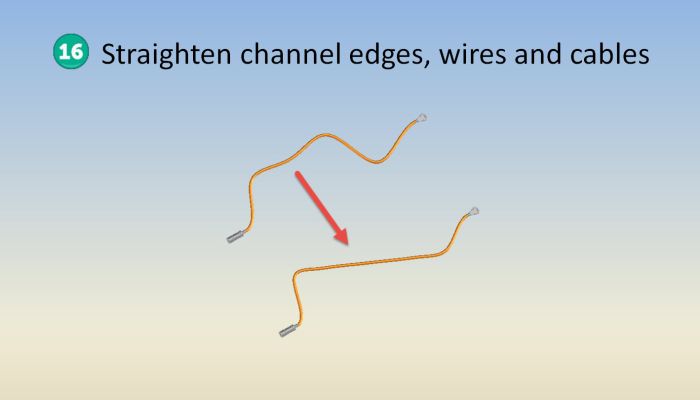

For wires, cables and channel edges, user can select two interpolation points or two 2 fixtures. For cables, you can also delete all points and create a cable between its end connectors.

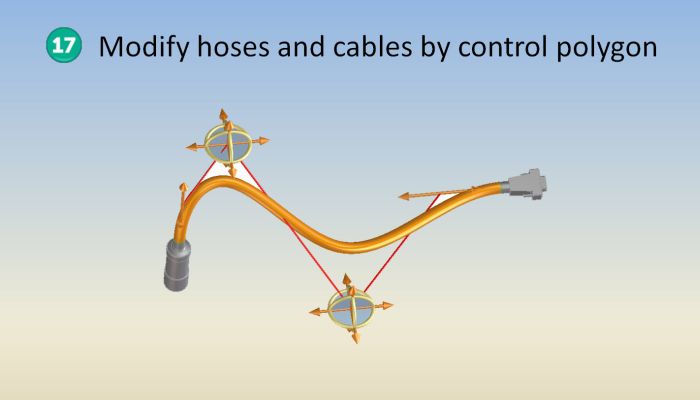

A new method is introduced to modify splines by their control polygons, which allows smoother modifications on curves. This enables to avoid bend radius violations by dynamic modifications.

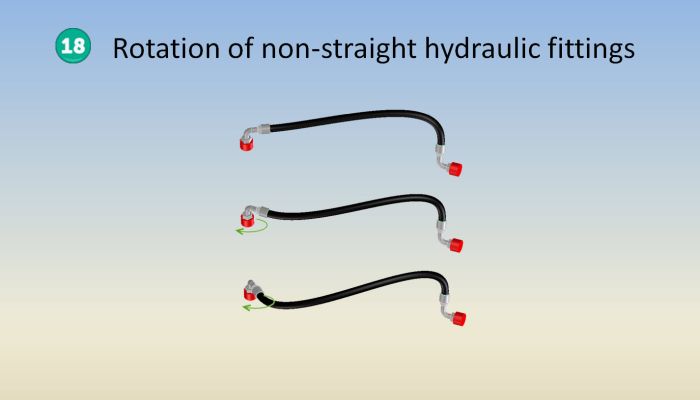

With this new function users can rotate non-straight fittings quickly and precisely for “what-if” analyses with 1-click.

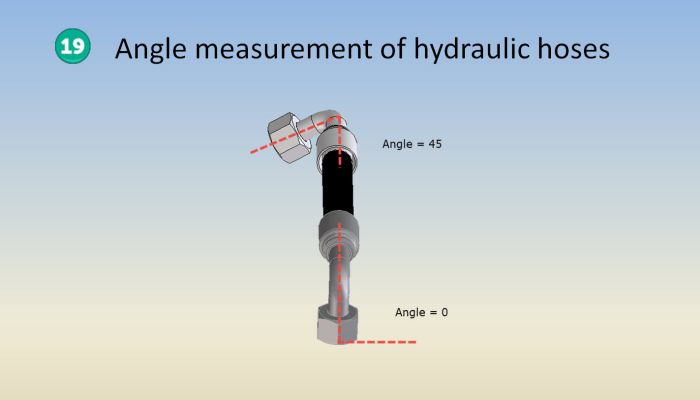

Users can inquire angles of hydraulic hoses for correct hose fitting crimping.

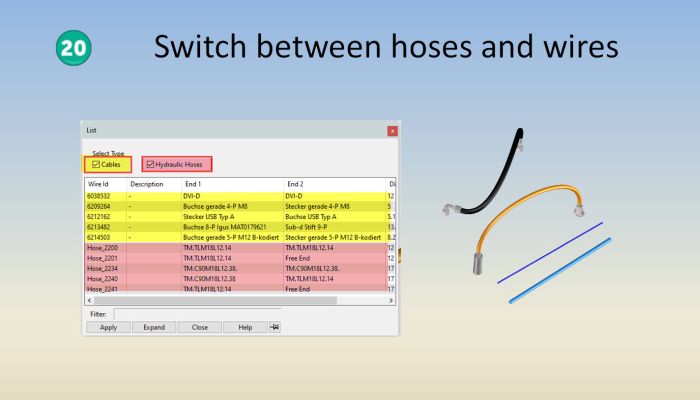

Quick switching between pneumatic hoses and electrical wires in the wire library.

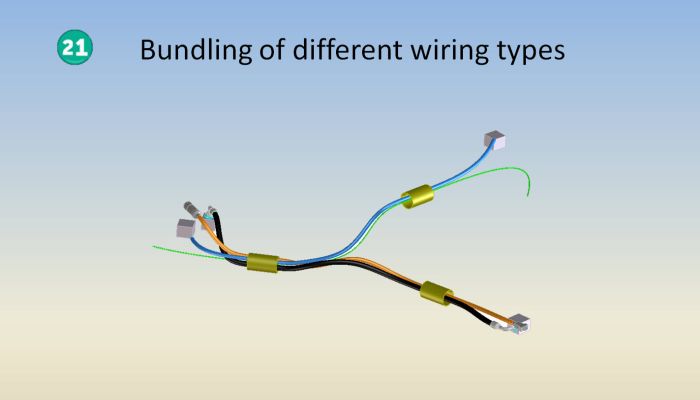

Now it is also possible to bundle different types of wiring elements together.

Now SpaceCable can export a file, which is readable from ECAD programs.

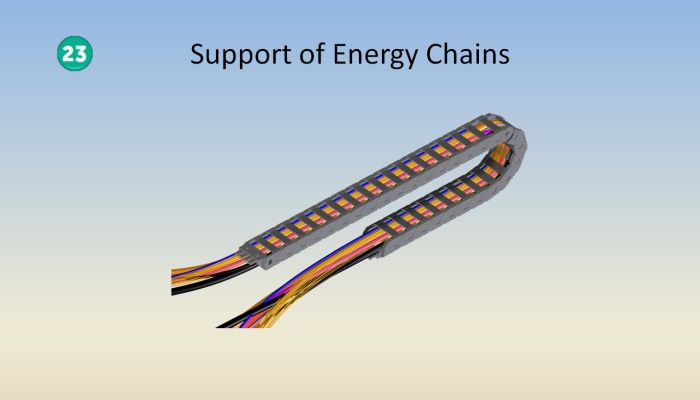

Now cables and wires can be routed through energy chains as well. Energy chains are used as fixtures.

Now it is possible to copy tie wraps from one tie wrap mount to another.

Now users can show only some tabs of SpaceCable depending on their needs, for more focused and faster work.

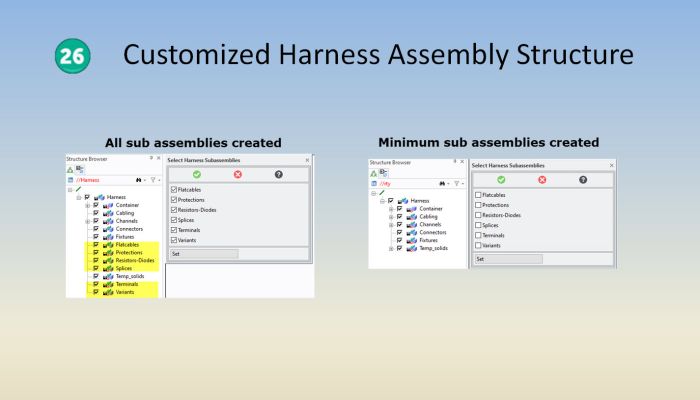

Users can now decide which sub assemblies should not be created when a new harness is created.

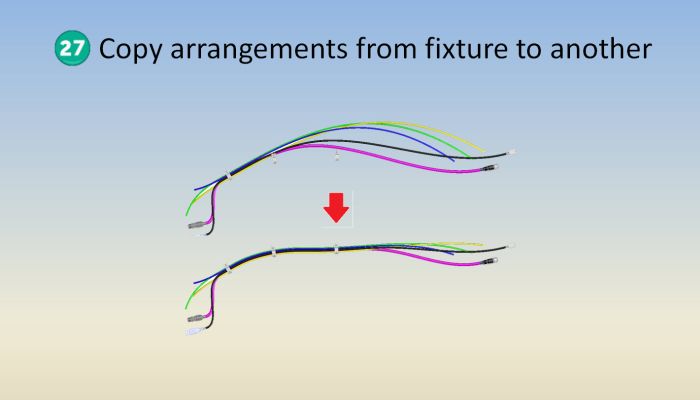

Now it is possible to copy an existing arrangement of cables/wires to an empty fixture just by two clicks.

Now you can create realistic shrink tubes which follow actual bundle shapes of the inciuded wiring objects.

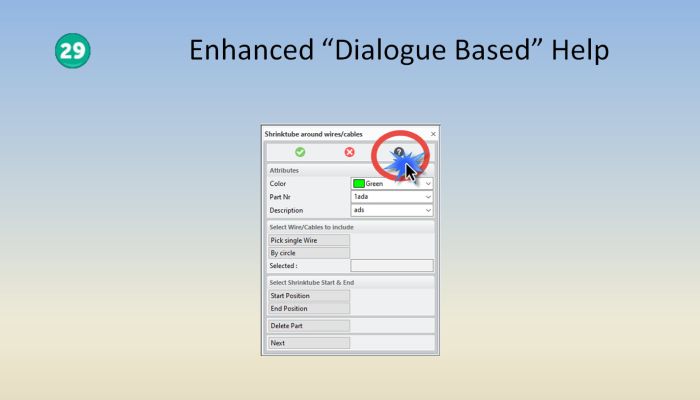

Now several dialogues have their own information videos and detailed help files.

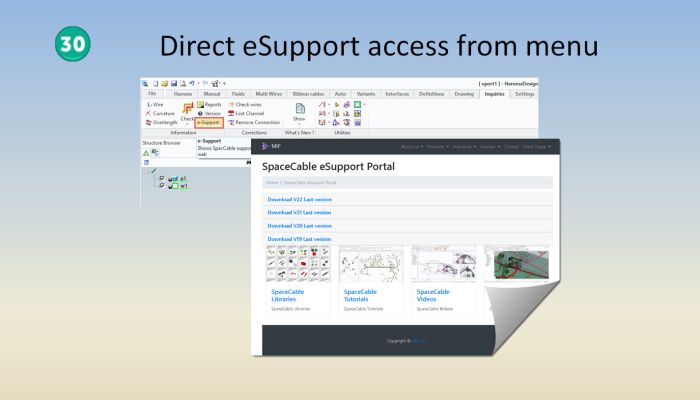

Support and subscription customers can now access the eSupport portal site directly from the SpaceCable UI.

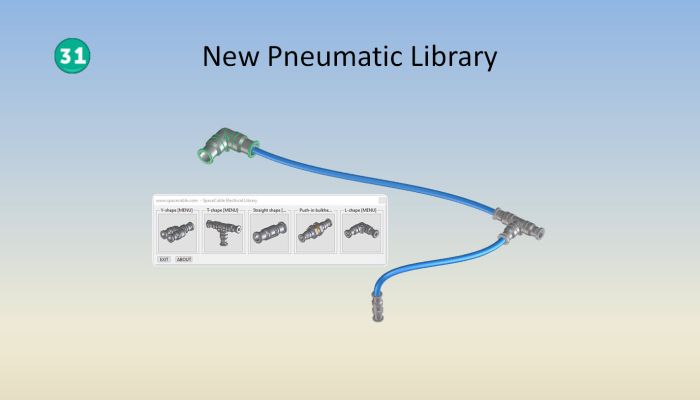

A new "demo" pneumatic library with some in the industry often used common parts is now included in SpaceCable.
